Considerations in IC Packaging for Automotive

---

A. Alani

LITE Technology Ltd.

Aug 2025

Integrated Circuit (IC) packaging plays a critical role in determining the performance, reliability, and manufacturability of final electronic products. It serves not only to protect the chip from physical damage and environmental factors but also to enable efficient signal transmission and power delivery. Poor packaging choices can lead to thermal issues, signal degradation, or increased costs, undermining even the most advanced chip designs. Therefore, considering IC packaging early in the chip design process ensures better integration, facilitates cost-effective manufacturing, and helps achieve optimal system performance from the outset.

In automotive applications — from engine management processors to advanced driver-assistance systems — packaging must be carefully engineered to withstand extreme temperatures, vibration, and other environmental stresses. Meeting stringent automotive reliability standards requires not only the right choice of package type but also meticulous design to ensure long-term durability and safety.

Package Selection:
Package selection for Integrated Circuits (ICs), especially in automotive applications, is a critical design decision that impacts the overall performance, reliability, thermal management, and long-term durability of the final product. In automotive environments, where electronic components are exposed to extreme temperatures, vibrations, moisture, and corrosive agents, choosing the right IC package and materials becomes even more essential.

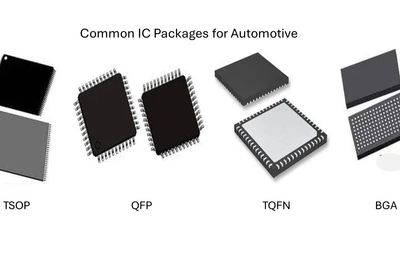

The choice of IC package—such as QFN, BGA, LGA, or advanced 3D/SiP configurations—depends on several factors, including size constraints, thermal requirements, power density, and electrical performance. For automotive applications, packages must meet stringent reliability standards like AEC-Q100. Packages with enhanced thermal dissipation capabilities, such as Power QFN or flip-chip BGA with heat spreaders, are often preferred for engine control units (ECUs), battery management systems, and powertrain modules where high power and thermal loads are common.

Design Considerations:
When designing for automotive applications, engineers must evaluate thermal performance (including junction-to-ambient resistance), mechanical stress tolerance, and long-term material degradation. Advanced thermal modeling and stress simulations are often used early in the design phase. Furthermore, packages must be compatible with automated assembly lines and meet traceability and inspection requirements typical in the automotive supply chain.

By considering packaging constraints and requirements early in the chip design process, designers can avoid costly re-spins, ensure compliance with automotive standards, and deliver high-reliability components that meet the demanding needs of modern vehicles.

Materials Used:
Automotive-grade IC packaging materials must withstand wide temperature ranges (typically -40°C to +150°C), high humidity, and chemical exposure. Epoxy molding compounds used for encapsulation are selected for their thermal stability and low moisture absorption. Substrate materials, such as high Tg FR4 or metal-core laminates, are chosen for their mechanical strength and thermal conductivity. Leadframes may be plated with corrosion-resistant alloys like silver or palladium-nickel to endure harsh environments. In some cases, underfill and overmold materials are used to enhance mechanical robustness and vibration resistance.

The differences between IC packaging for the consumer market and automotive applications are substantial, driven by divergent priorities in reliability, lifecycle, environmental resilience, and regulatory compliance. Here’s a structured breakdown:

Consumer IC Packaging

• Design      Priorities: Cost-efficiency, compactness, and rapid time-to-market.
• Lifecycle      Expectations: Typically 2–5 years; obsolescence is common.
• Environmental      Tolerance: Operates within standard ambient conditions (0°C to 70°C).
• Packaging      Technologies:
  • Flip-chip       BGA, QFN, WLCSP (fan-in/fan-out)
  • Emphasis       on miniaturization and integration (e.g., SiP for smartphones)
• Testing  & Qualification:
  • Standard JEDEC tests (e.g., JESD22)
  • Less stringent than automotive-grade
• Supply Chain Focus: Speed and flexibility; frequent design changes and supplier shifts.

Automotive IC Packaging

• Design      Priorities: Reliability, robustness, and long-term      availability.
• Lifecycle      Expectations: 10–15 years; must support extended vehicle production cycles.
• Environmental      Tolerance:
  • Wide temperature range: –40°C to +150°C
  • Resistance to vibration, humidity, and thermal cycling
• Packaging Technologies:
  • Ceramic packages, leaded QFPs, DBC substrates for power modules
  • Increasing use of SiC/GaN devices with advanced thermal packaging
  • Adoption  of fan-out WLP, embedded die, and 2.5D/3D integration      for ADAS and infotainment
• Testing  & Qualification:
  • AEC-Q100/Q104       standards
  • ISO       26262 compliance for functional safety
  • Zero-defect       targets and fault-tree analysis
• Supply Chain Focus:
• Long-term  sourcing contracts
• Georedundant  manufacturing to avoid single-point failures
• Traceability  and cybersecurity (e.g., ASPICE[LINK],      blockchain identifiers)

So, when advising customers on transitioning consumer-grade designs to automotive, the key is to re-engineer for reliability and compliance — often requiring changes in materials, interconnects, and validation protocols. For example, the differences in materials between consumer IC packages and automotive-grade IC packages are driven by vastly different environmental, reliability, and lifecycle demands.
